Deskripsi singkat

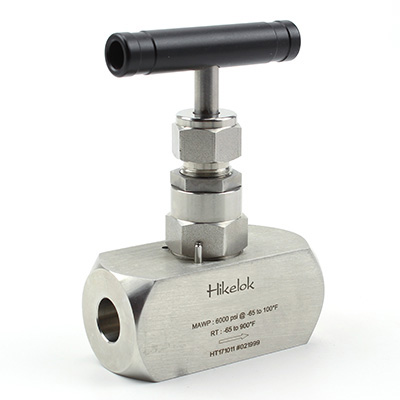

Stainless Steel NV8 Series Needle Valve, 0.85 Cv, M22*1.5 Male ISO 261 Part #: NV8-MS22-06-316
PT Jacesti Antamani — one solo agent Hikelok untuk Indonesia.
Detail produk
| Attribute | Needle Valves |
|---|---|
| Body Material | 316 Stainless Steel |
| Connection 1 Size | M22*1.5 |
| Connection 1 Type | Male ISO 261 |
| Connection 2 Size | M22*1.5 |
| Connection 2 Type | Male ISO 261 |
| Seat Material | Same as body |
| CV Maximum | 0.85 |
| Orifice | 0.236 in /6.0 mm |
| Tip Type | Blunt |
| Tip Material | Same as body |
| Packing Material | PTFE |
| Panel Mounting | No |
| Handle Color | Black Aluminum Bar |
| Flow Pattern | Straight |
| Working Pressure Rating | Max 6000 PSIG (413 bar) |
| Temperature Rating | -65℉ to 1200 ℉ (-53 ℃ to 648 ℃) |
| Testing | Gas Pressure Test |
| Cleaning Process | Standard Cleaning and Packaging (CP-01) |
