Deskripsi singkat

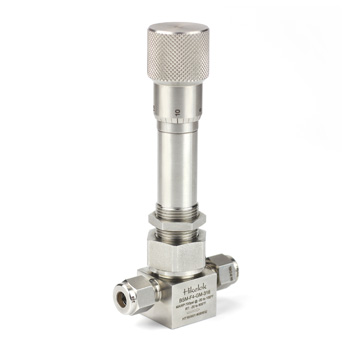

Bellows-Sealed Metering Valves,3/8in Fractional Tube Butt Weld 1/4 in Fractional Tube Socket Weld Part #: BSM-FBW6FSW4-WM-316
PT Jacesti Antamani — one solo agent Hikelok untuk Indonesia.
Detail produk
| Attribute | Bellows-Sealed Metering Valves |
|---|---|
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 3/8 in. |
| Connection 1 Type | Fractional Tube Butt Weld |
| Connection 2 Size | 1/4 in. |
| Connection 2 Type | Fractional Tube Socket Weld |
| Body-to Bellows Seal | Welded |
| CV Maximum | 0.019 |
| Orifice | 0.057in /1.4 mm |
| Stem Tip | Metering |
| Flow Pattern | 2-Way, Straight |
| Temperature Rating | Max700 PSIG (48.2bar) |
| Working Pressure Rating | 20℉ to 900℉ (-28℃ to 482 ℃) |
| Testing | Helium testing |
| Cleaning Process | Standard Cleaning and Packaging (CP-01) |
